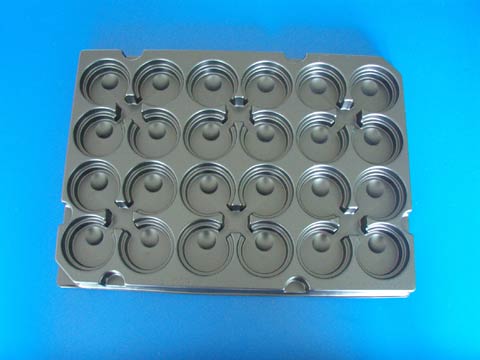

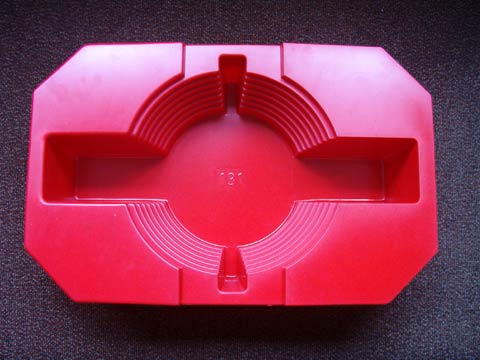

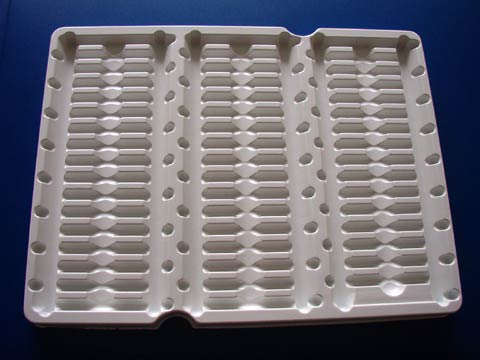

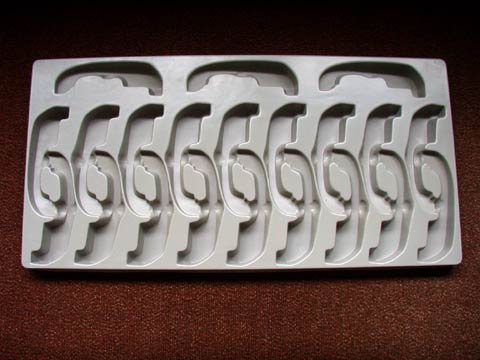

thermoformed articles

  • point-of-sale display units

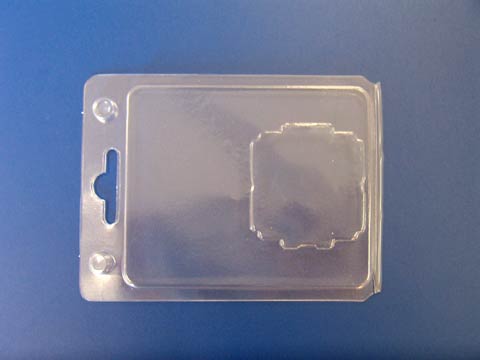

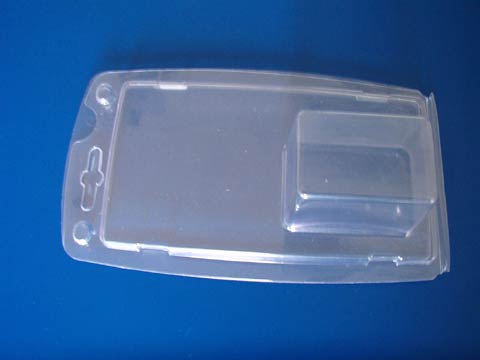

  • selfservice blister packaging, bottle and ampoule packaging
  • partition packaging, trays and other multi packaging

    The deep-drawn articles are thermoformed using the vaccum or pneumatic process.

The following base materials can be used to produce the thermoformed articles :

  • rigid PVC (can be refridgerated and gamme ray sterilised)
  • polyester PET/A; PET/G (white, coloured, transparent, matallised)
  • polystyrene PS (tuffed, scared, matt, gloss, laminated)
  • polypropylene
  • PC
  • PE
  • ABS
  • multi-layer plastic structures
  • total thermoformable area max.: 1400 x 700 mm
  • depth of draw: max. 250 mm
  • material thicknesses: 0,1 to 8,0 mm

Click on the pictures to enlarge
